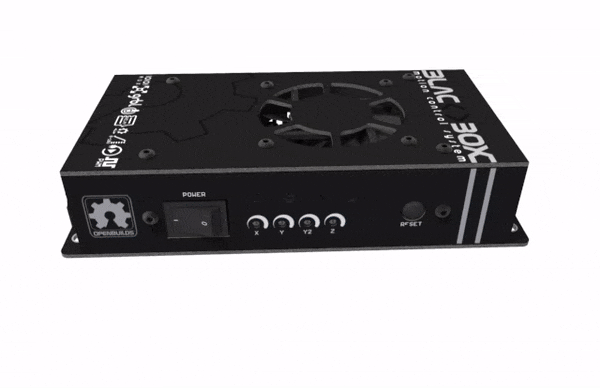

Order your OpenBuilds BlackBox 4x Motion Control System
OpenBuilds® BlackBox 4X Specifications
- Plug and Play easy connections that work directly with the OpenBuilds® Xtension wiring ecosystem
- Muscle & Brains boards stacked configuration
- 4 x High Powered 3.2A Stepper Drivers (Max rating 4A)
- Auxiliary Serial Input for alternative connectivity expansion
- USB Interface for Plug and Play
- Power Switch (no more reaching for the power strip or unplugging)
- Easily reachable Current Adjustment Potentiometers
- All new high end Enclosure/Case included, with built in back-lit indication LEDs
- Built in cooling solution/through airflow design
- Easy V-Slot compatible Mounting
- 3 x Endstop inputs with optional power output (Selectable 5v/24v) for use with Mechanical or powered switches such as Inductive sensor
- Endstop inputs are protected against high voltages to allow for use of 24v Inductive Sensors
- XYZ Probe input
- Up to 24v 5A switched output for coolant devices such as 24v DC pumps, solenoids, contactors, or Solid State Relays
- Input Power Polarity protection with indicator LED
- 10 Amp Input Power Fuse
- LED Indicators USB Serial | Power | Polarity | Probe | Motors Enabled | 4x Fault indicators | Coolant, (Spindle/Laser/Toolhead) | RGB LED behind top cover Logo
- Stepper Driver Fault condition (Overheat, Short Circuit, etc) indicator LEDs for each axes allows you to pinpoint trouble easier.
- 5v PWM and 5v Direction Spindle Signals
- 0-10v Analog Spindle Control Signal Output for VFD Spindles
- Slave Axis configurable as a slave X, Y or Z
- Door Interlock signal connector to allow machines with enclosures to pause/resume when the door opens/closes
- Up to 1/32 Microstepping (Defaulted to 1/8 for higher Torque)
- Well planned locations of all connectors to allow for logical cable management
- Configurable Relay for generic use cases (Plasma trigger, Coolant Pumps, Spindle control, etc
